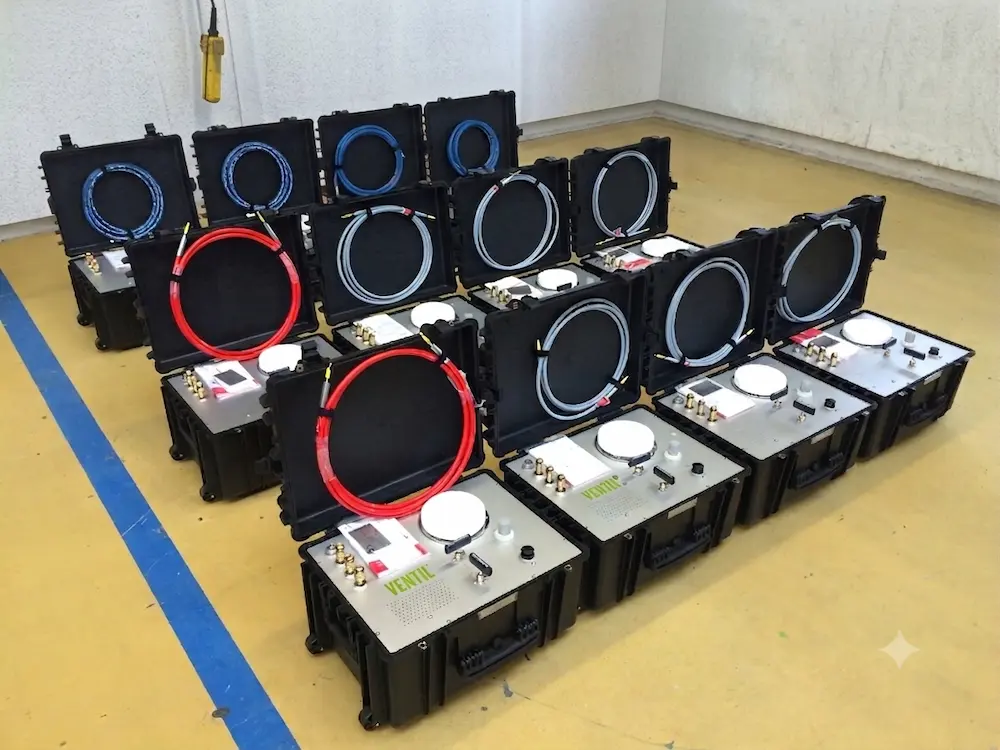

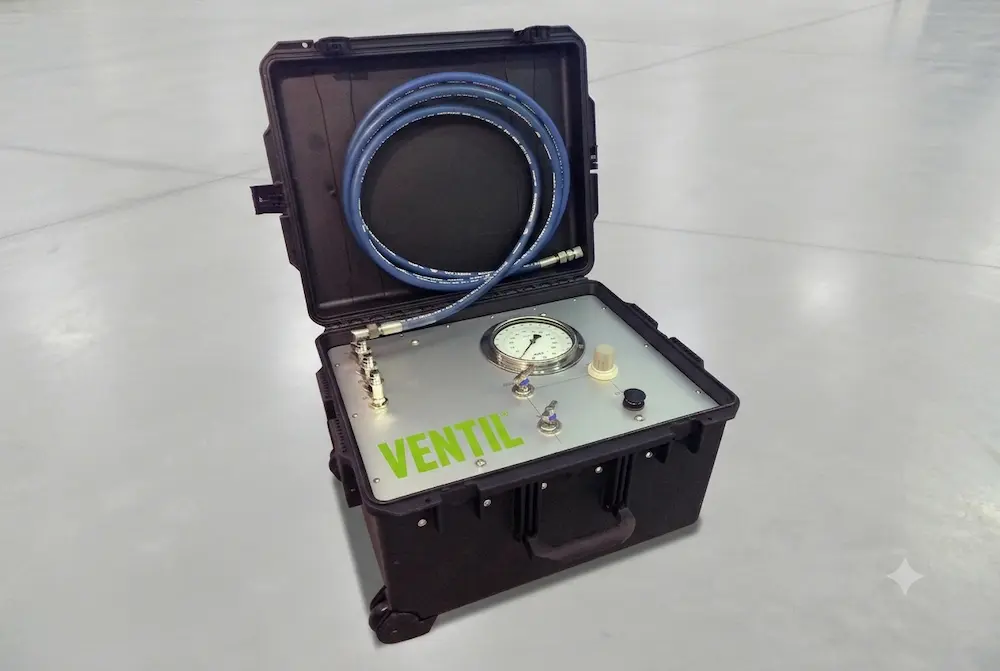

The Orion LM portable liquid test system is a compact, high-pressure hydrostatic test units designed for pressure testing valves, pipelines, pressure vessels, cylinders, actuators, and other critical pressure-containing equipment.
The system generates controlled hydraulic pressure using potable water or hydraulic oil as the test medium, enabling safe verification of pressure integrity, leak tightness and structural performance.
It features precision pressure control and monitoring, making them suitable for factory acceptance testing (FAT), maintenance, field service and quality assurance applications across industrial environments.
Type: Liquid test system
Application: High-pressure hydrostatic testing
Max Test Pressure: 0-2.000 bar (30,000 psi)
Connection: Quick coupler connections for the drive air, test fluid, high pressure outlet and the test fluid release/drain line.
Type Range Pressure Gauge
LM 100 Max. 100 bar (1,450 psi) 0-160 bar (2,300 psi)
LM 500 Max. 500 bar (7,250 psi) 0-600 bar (8,700 psi)
LM 1000 Max. 1.000 bar (14,500 psi) 0-1.600 bar (23,200 psi)
LM 1500 Max. 1.500 bar (21,750 psi) 0-2.000 bar (30,000 psi)
High pressure range available on request.
