ProVent 12

Pressure vacuum relief valves, mobile
API 2000 and ISO 28300 compliant
Quick clamping system
Computer Registration System standard included

General Purpose

At its core, the ProVent 12 features a dual-range (pressure and vacuum) test system designed to accurately test and verify valve setpoints and leak rates in accordance with clean air and emission control testing standards, such as API 2000 and ISO 28300. Seat leakage measuring: 0 - 10 Nl/min (0 - 21 SCFH).

The ProVent 12 is equipped with a quick-clamping system that allows secure and efficient mounting of most tank relief valve types and sizes.

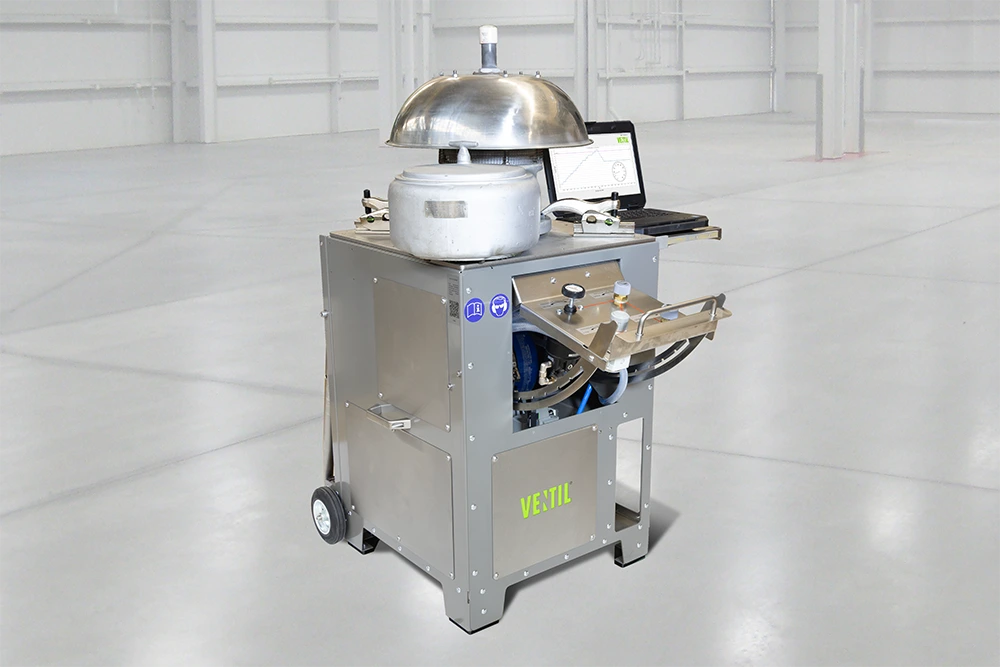

provent-12-815a0035-b-1000x667

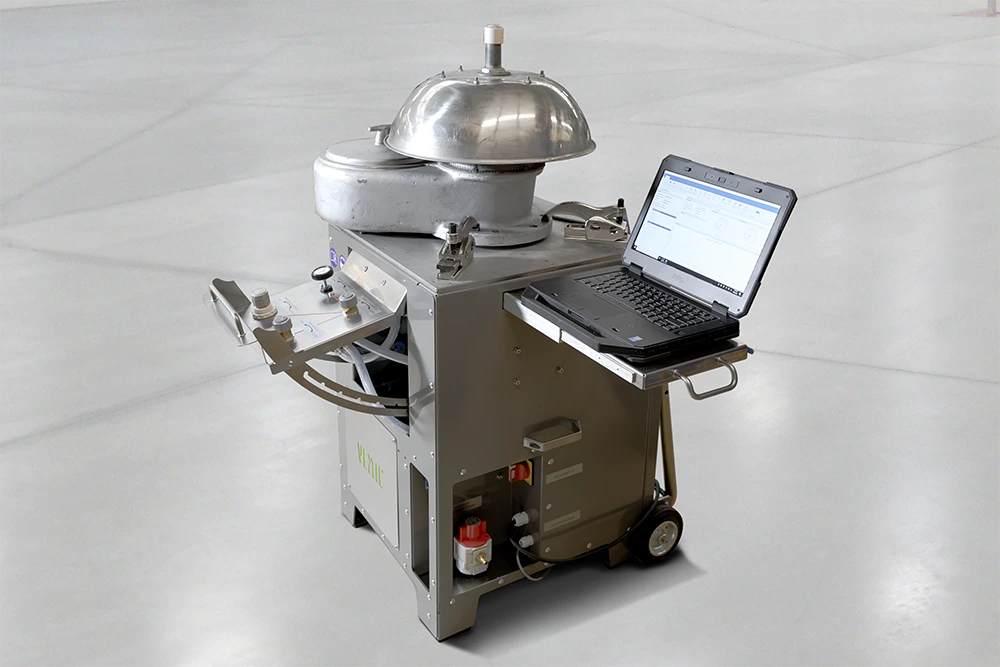

provent-12-815a0112-b-1000x667

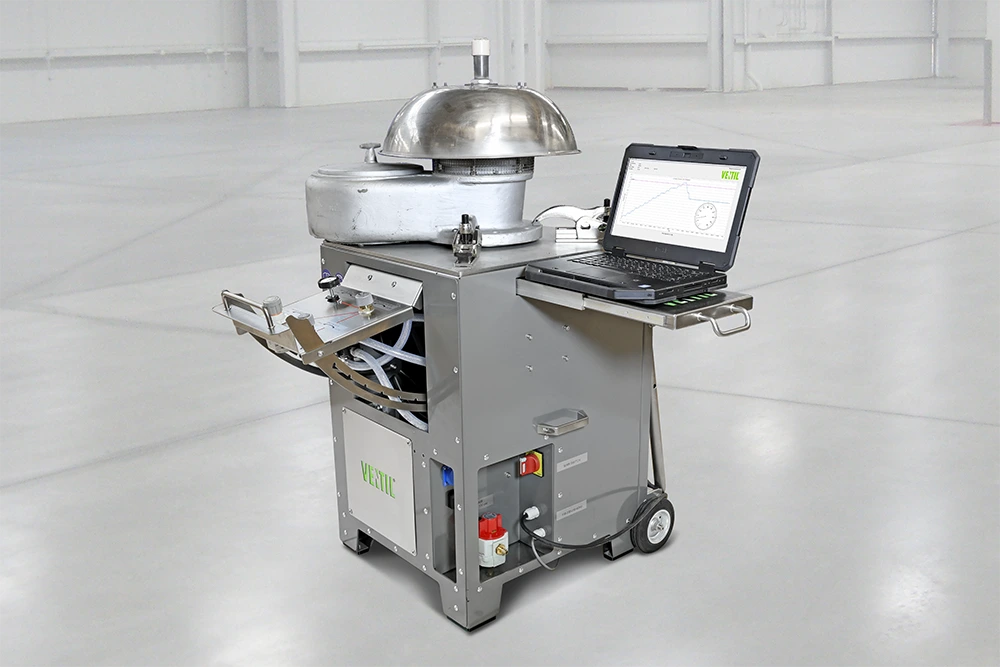

provent-12-815a0026-b-1000x667

Specifications

Size Range: 2"-12" (DN50-DN300)
Max Set Pressure: -500 mbar – 1,500 mbar (-7 – 22 psi)
Clamping Force: 10 ton
Test Medium: Gas
Test Standards: API 2000
Remarks:

- Computer Registration System with rugged laptop
- Easy to transport, high quality finish, designed for the use in-shop and on-site

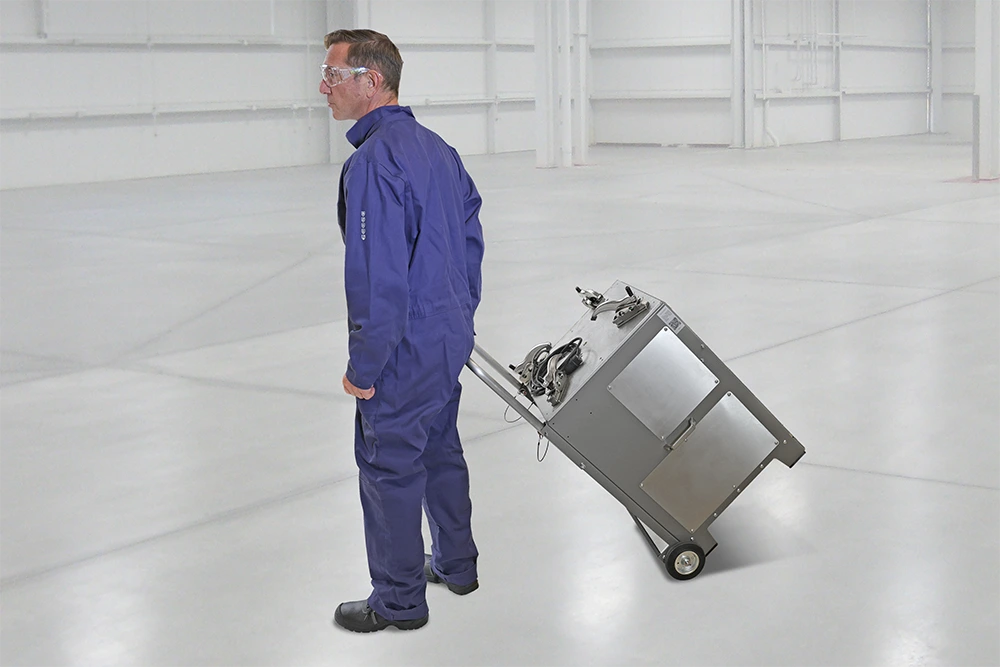

provent-12-815a0137-b-1000x667

Optional Systems

More Info Optional Systems
Request for Quotation

Expand your Setup

VC25 1000x667 full
VC25-SRV
Pressure relief valves
Valve range: 1/2"-10" (DN15-DN250)
Clamping force: 25 ton
Explore Features
CT800
ProVent CT800
Pressure vacuum relief valves, transportable
Valve range: 1/4"-24" (DN6-DN600)
Clamping force: 10 ton
Explore Features
PS06
PS06
Pilots of relief valves, transportable
Valve range: 1/4"-3/4" (DN8-DN20)
Clamping force: 2 ton
Explore Features
