Nomad CT40-1 Ventil Test Equipment

General Purpose

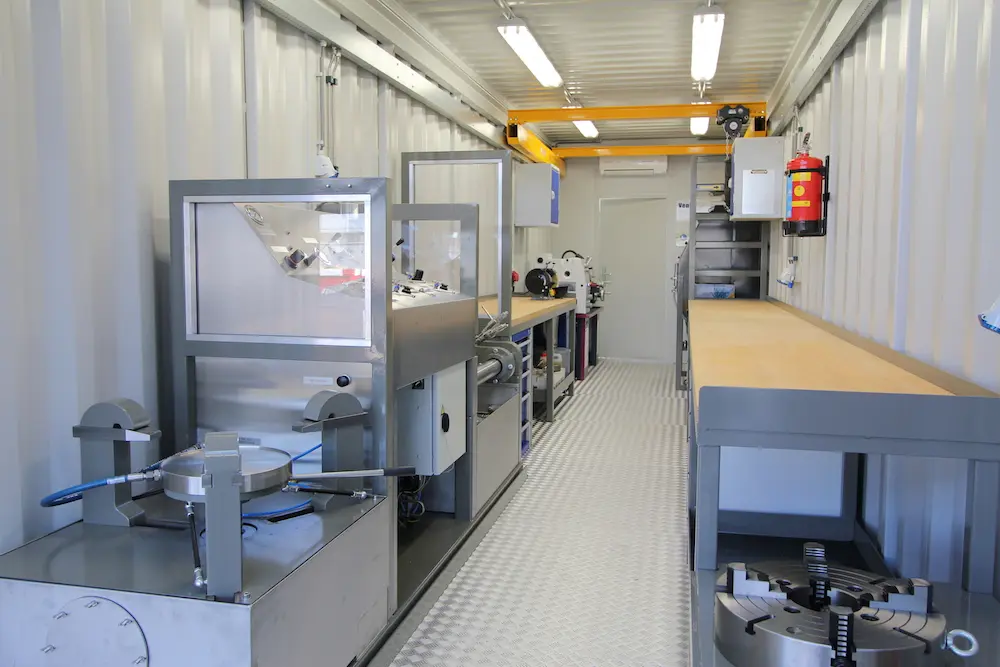

The CT40-1 is a fully equipped 40 ft High Cube containerized workshop for the on-site repair and overhaul of all common shut-off valves, control valves and pressure relief valves. It includes all essential tools and equipment to perform efficient valve maintenance while minimizing plant downtime.

The High Cube design provides an additional 300 mm (12") of internal height for improved handling of larger valves. As part of Ventil's containerized workshop range, the CT40-1 is designed for fast, in-situ valve service and can be customized to suit specific applications and operating environments.

Specifications

Container Size: 40 ft

Container Type: High Cube (double door)

Application: Testing and Repair

Valve Type: Pressure Relief Valves, Control Valves, Shut-Off Valves

Valve Size: 1/2"-10" (DN15-DN250)

Configuration

Test Bench: VC25-HC25-CC
Test Medium: Gas and Liquid
Test Standards: API 526, API 527, EN ISO 4126, PED 2014/68/EU
Crane: Overhead Bridge Crane (500 kg)
Office Compartiment

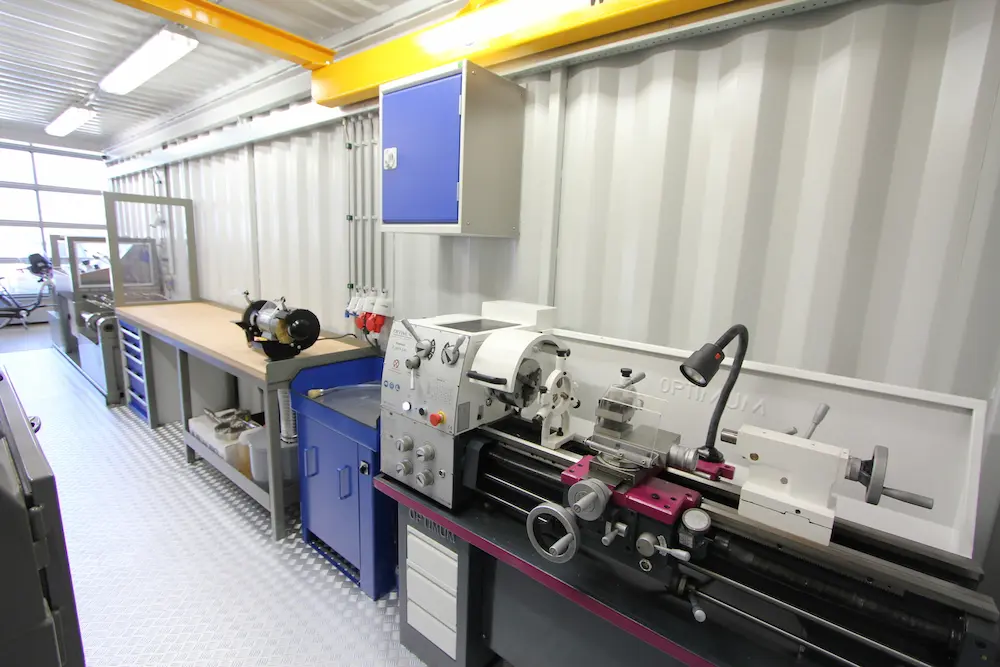

Workbench with Vice
Nozzle Remover / Valve (Dis)Assembly Block

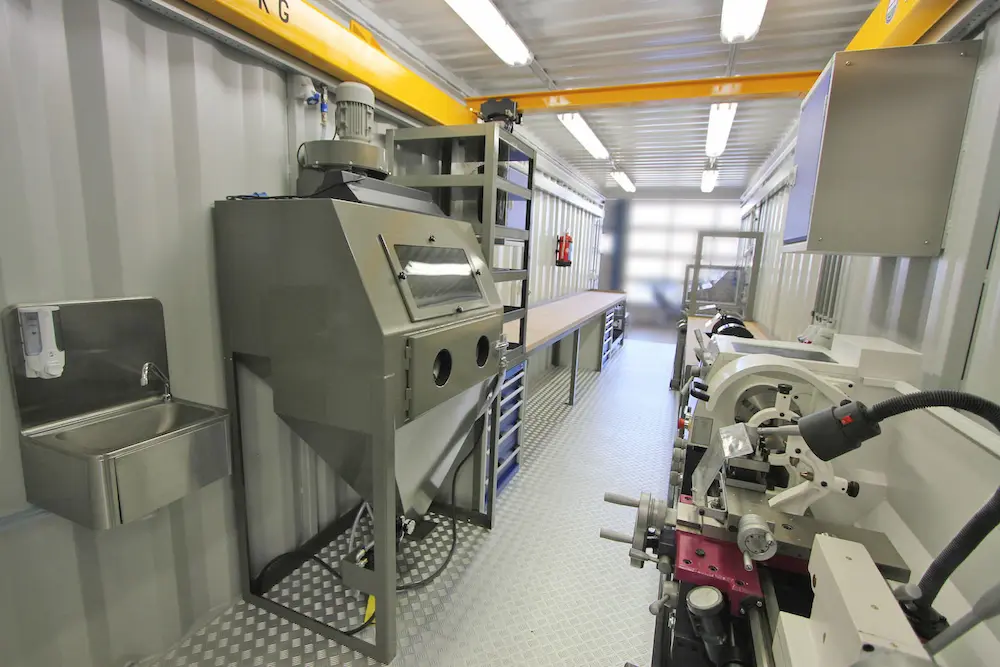

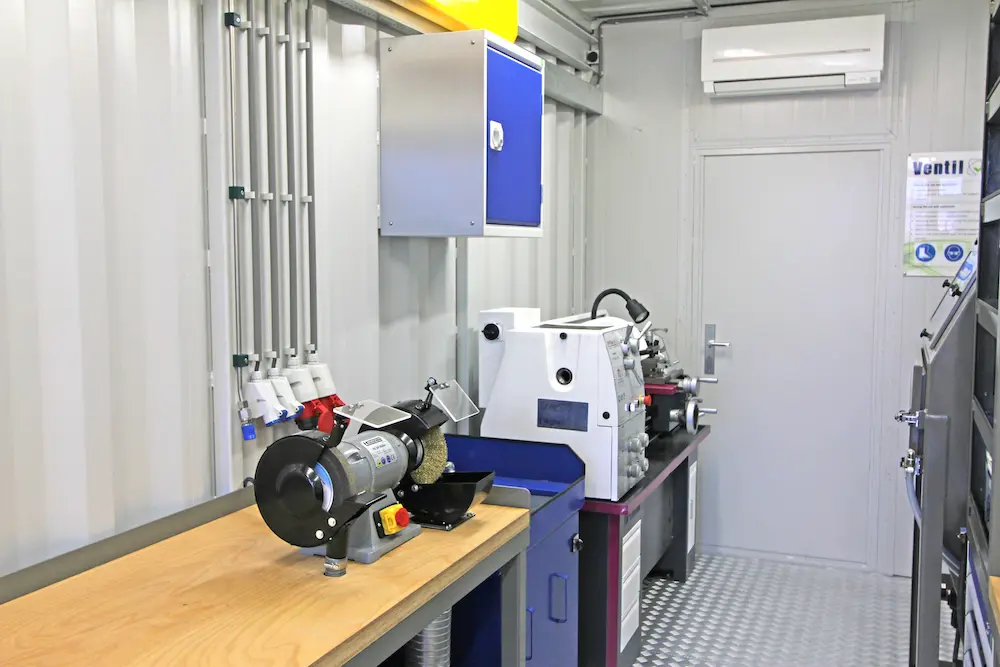

Grinding / Brushing Machine
Shelving for Parts & Materials
Potable Water System / With Sink
HVAC Unit / Air conditioning
Compressor / Utility Compartment
Safety Features: Safety screen, Interlock, Two-hand operation, Warning light, Portable fire extinguisher
Optional Systems: Computer Registration System (CRS)
Remarks: on-shore use

Expand your Setup

Orbit 10

Portable valve seat resurfacing tool

Valve Range: 1 1/2"-10" (DN40-DN250)

Application: Grinding, Lapping

Polir F6

Portable valve seat resurfacing tool

Valve Range: 1/4"-6" (DN6-DN150)

Application: Grinding, Lapping

ProVent CT12

Pressure vacuum relief valves, mobile

Valve Range: 2"-12" (DN50-DN300)

Clamping Force: 10 ton
