SECOND LIFE EQUIPMENT
“Ventil designs products for longevity, creating closed-loop supply chains and encouraging the re-use of equipment.”
RETURN, REFURBISH & RE-USE!
Are you looking for the opportunity to purchase or to return a Ventil Test Bench at reasonable pricing?
A well-maintained Ventil Test Bench can last for decades and create value for more than one customer. We aim to keep systems in use as long as economically and environmentally possible, focusing on refurbishment and service of equipment. By providing a second life program, our customers and we can make an even greater contribution to the circular economy.
Second Life Equipment meets or exceeds the performance of New Equipment. Naturally, Ventil provides factory warranty and ensures spare parts availability. We can make modifications to Second Life Equipment to enhance functionalities, safety, and productivity.
Contact us today to learn more!
VENTIL TEST BENCH HC600-L (refurbished: machine no. 18503)
Model: HC600-L
Valve Size: 4″- 36″ / DN 100 – 900 mm
Medium: Gas or Liquid
Low Pressure Gas Testing: 0-7 bar / 100 psi
High Pressure Liquid Testing: 0-400 bar / 5,800 psi
Test Standards: API, ANSI, ASME, BS, ISO, IOGP, MSS-SP etc
Type: Single Station
Maximum Clamping Force: 600 Ton
Minimum Clamping Force: 30 Ton
Computer Registration System (CRS): Yes
Optional Systems:
– Safety Pressure Enclosure with Interlock
– Test- and operating systems for actuators and controls
– High Pressure Gast test system for Nitrogen / Fugitive Emissions testing
– Inner (radial) sealing adapters for butt- or socket weld ends
– HD camera systems for inspection from a safe / remote distance

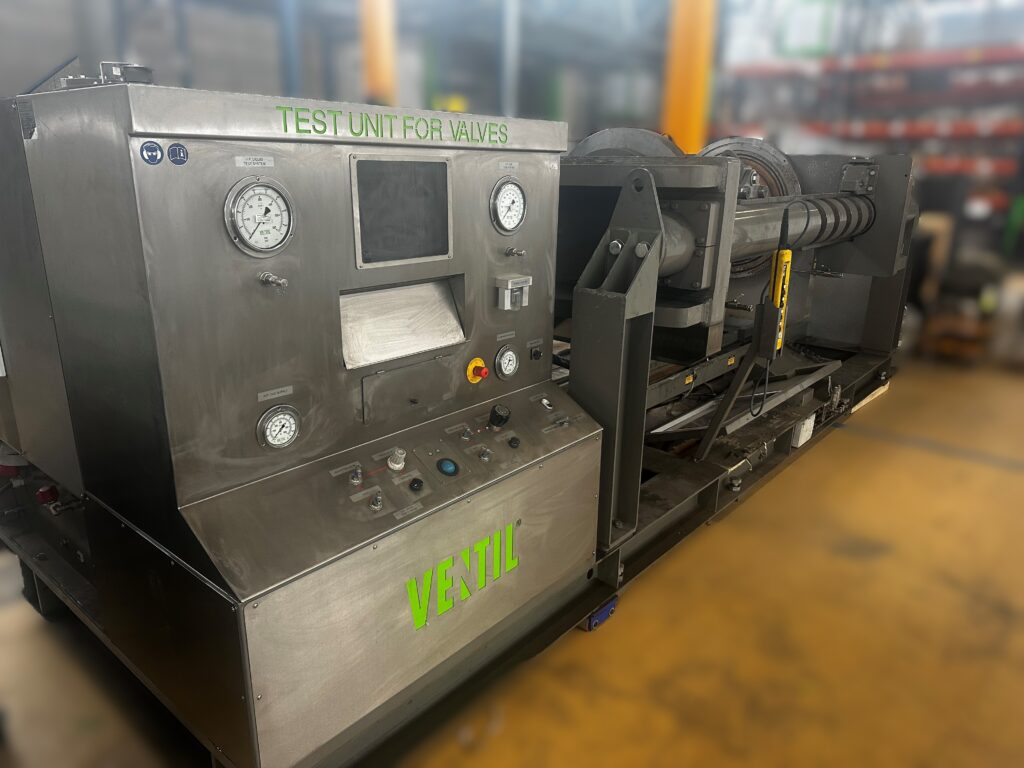

Photo capture: HC600-L prior to refurbishment. After refurbishment this machine will meet the performance of New Equipment.

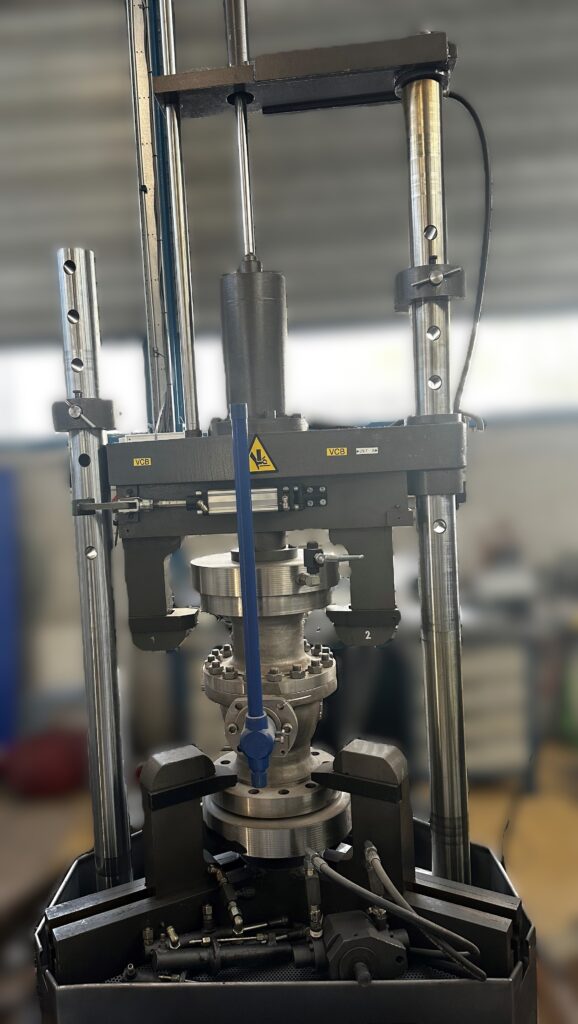

VENTIL CLAMPING STATION (refurbished)
Model: VCB50 – double sided fixture
Valve Size: 1/2″ – 16″ / DN 15 – 400 mm
Medium: Gas or Liquid
Clamping Force: 50 Ton
Type: Single Station
This clamping systems is perfectly suited for safely clamping and testing both split-body and single body piece valves without linear (squeezing) of the valve body.

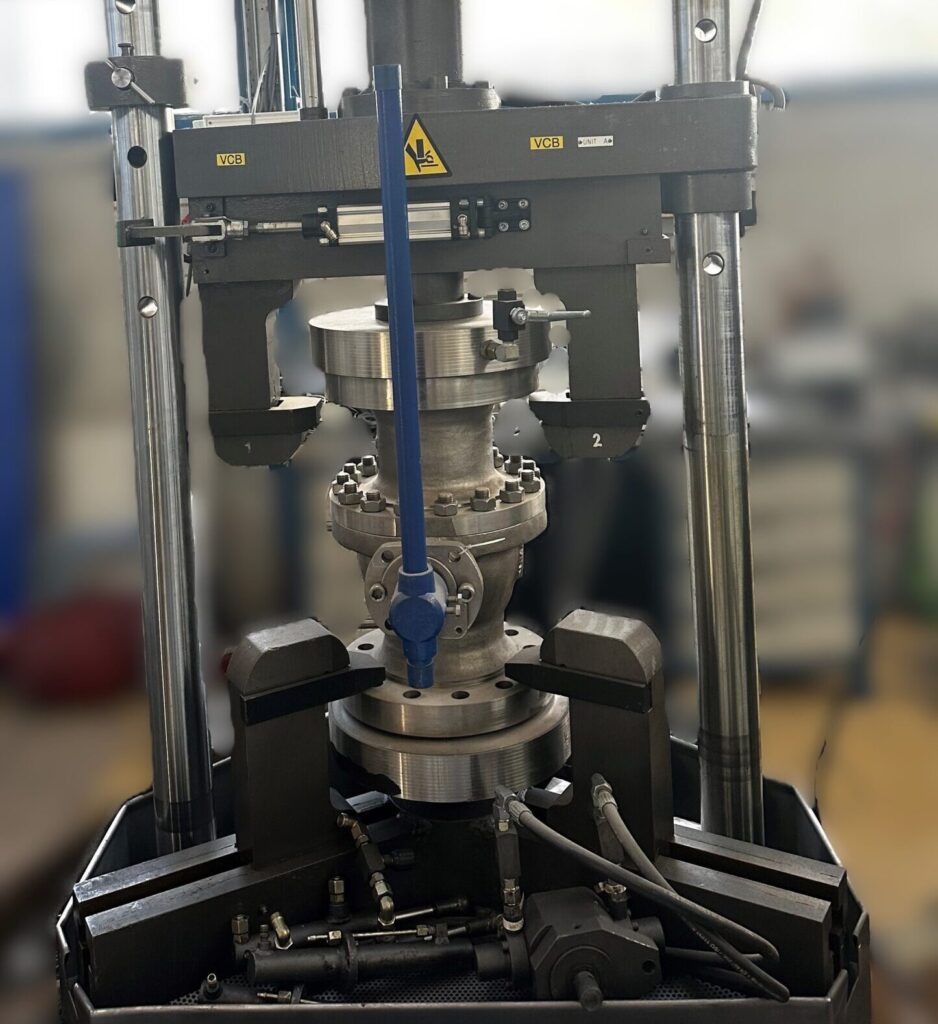

Photo capture: VCB50 clapning station prior to refurbishment. After refurbishment this machine will meet the performance of New Equipment.
VENTIL TEST BENCH VC2
(refurbished: machine no. 21875)
Model: VC2-SP-T4
Valve Size: 1/2″-2″ / DN 15-50
Test Pressure: 0-200 bar/ 2,900 psi
Test Medium: Gas
Test Standard: API 527
Type: Single Station
Clamping Force: 2 Ton
Safety Screen: yes
A portable test bench for Pressure Relief/Safety Valves for on-site use.
Optional: Computer Registration System T4 (packed in a separate storm case)

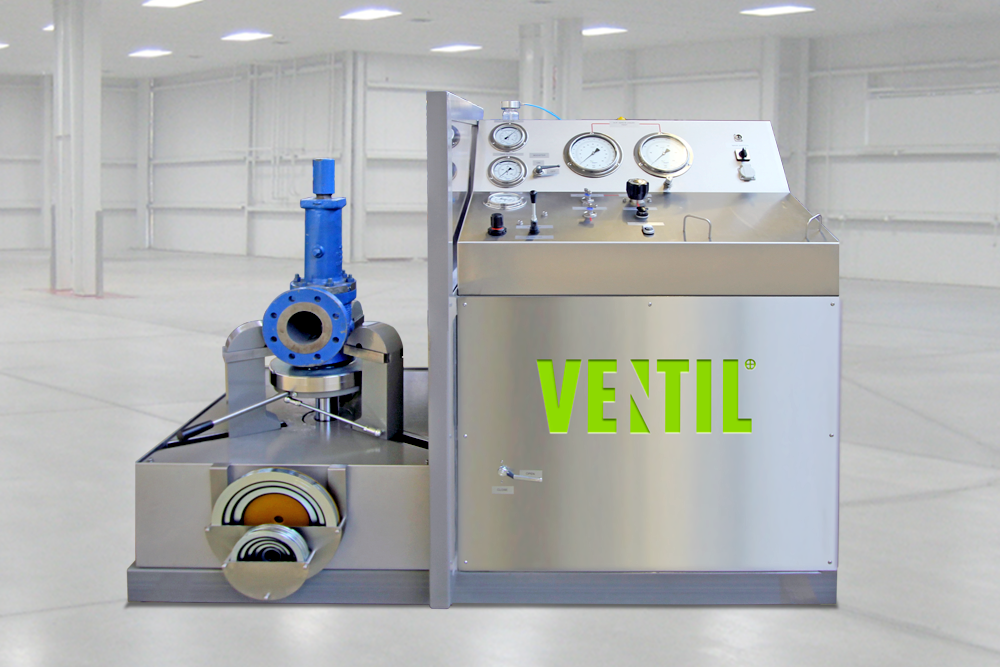

VENTIL TEST BENCH VC25-CC
(refurbished: machine no. 27889)
Model: VC25-CC
Valve Size: 1/2″-10″ / DN15-100
Test Pressure: 0-300 bar/ 4,350 psi
Test Medium: Gas or Liquid
Test Standard: API 527
Type: Single Station
Clamping Force: 25 Ton
A test bench for Pressure Relief/Safety Valves for use in a workshop, on-site or containerized.
VENTIL TEST BENCH VCB30-MT4
(demo unit: machine no. 14268)
Valve Size: ½” – 4” / DN15-100 mm
Test Pressure: 0-700 bar/ 10,150 psi
Test Medium: Gas or Liquid
Type: Multi Station
Clamping Force: 30 Ton
Safety Enclosure: yes
Computer Registration System: yes
A 4-station test bench for automated testing ball-, gate-, globe- or plug valves in the range ½ – 4” / DN15-100 mm.
