VC25-HC25-CC

All common valves, transportable

Space-efficient design

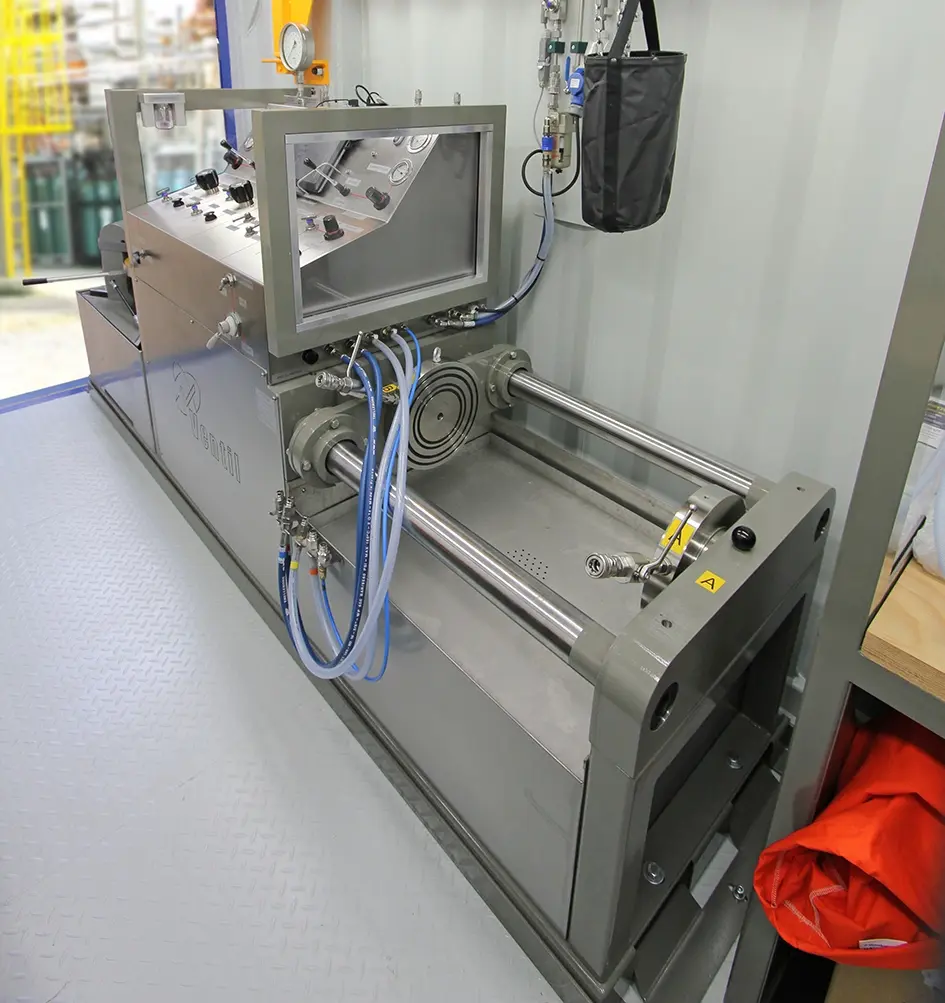

Easy clamping and sealing

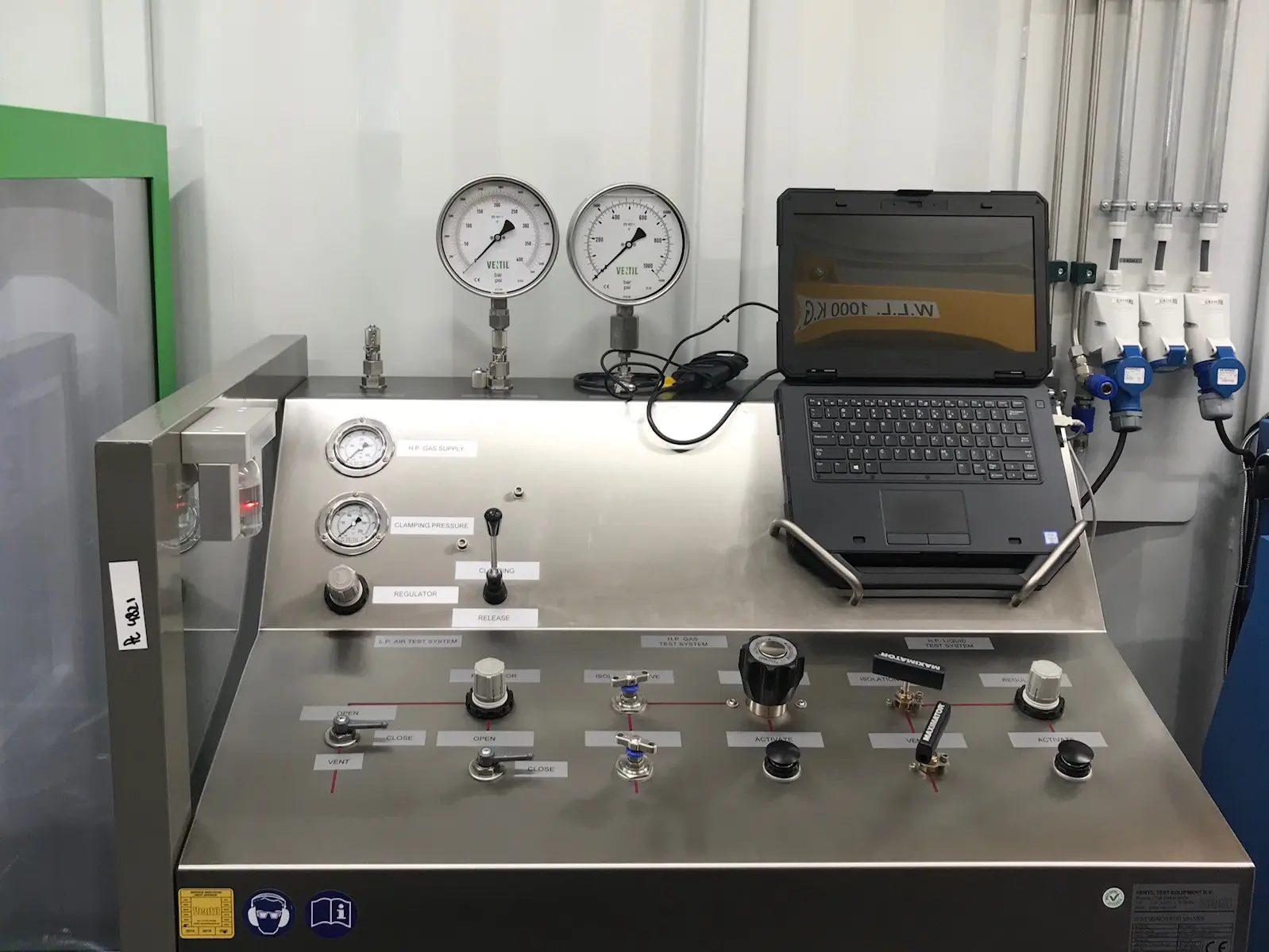

Full stainless steel control panel

General Purpose

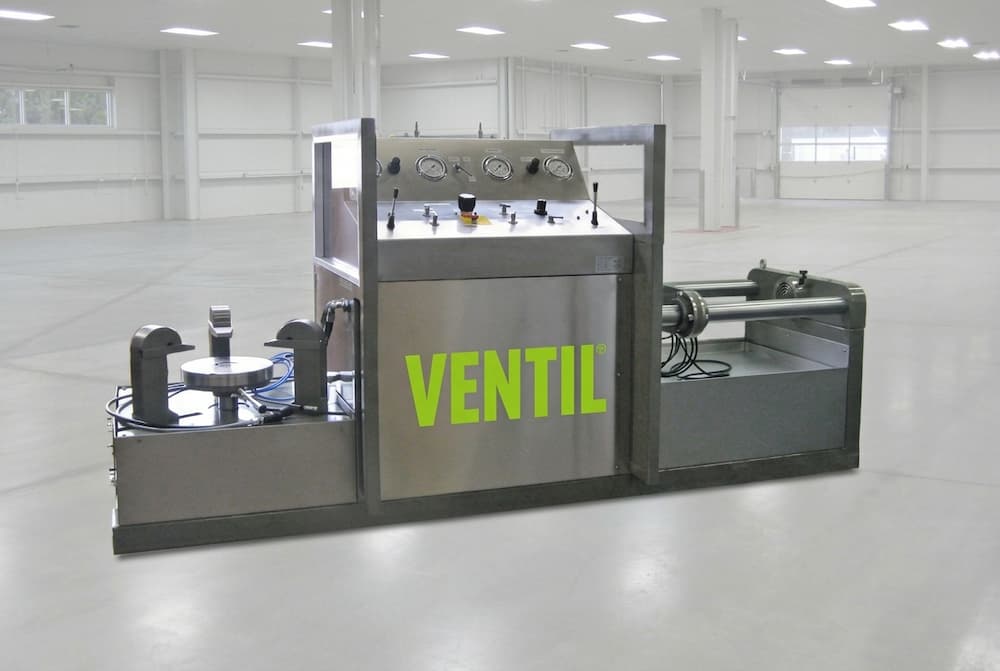

The VC25-HC25-CC is a universal, transportable test bench designed for the pressure testing of Pressure Relief Valves (PRVs), Shut-Off and Control Valves ranging from ½"-10" (DN15–DN250).

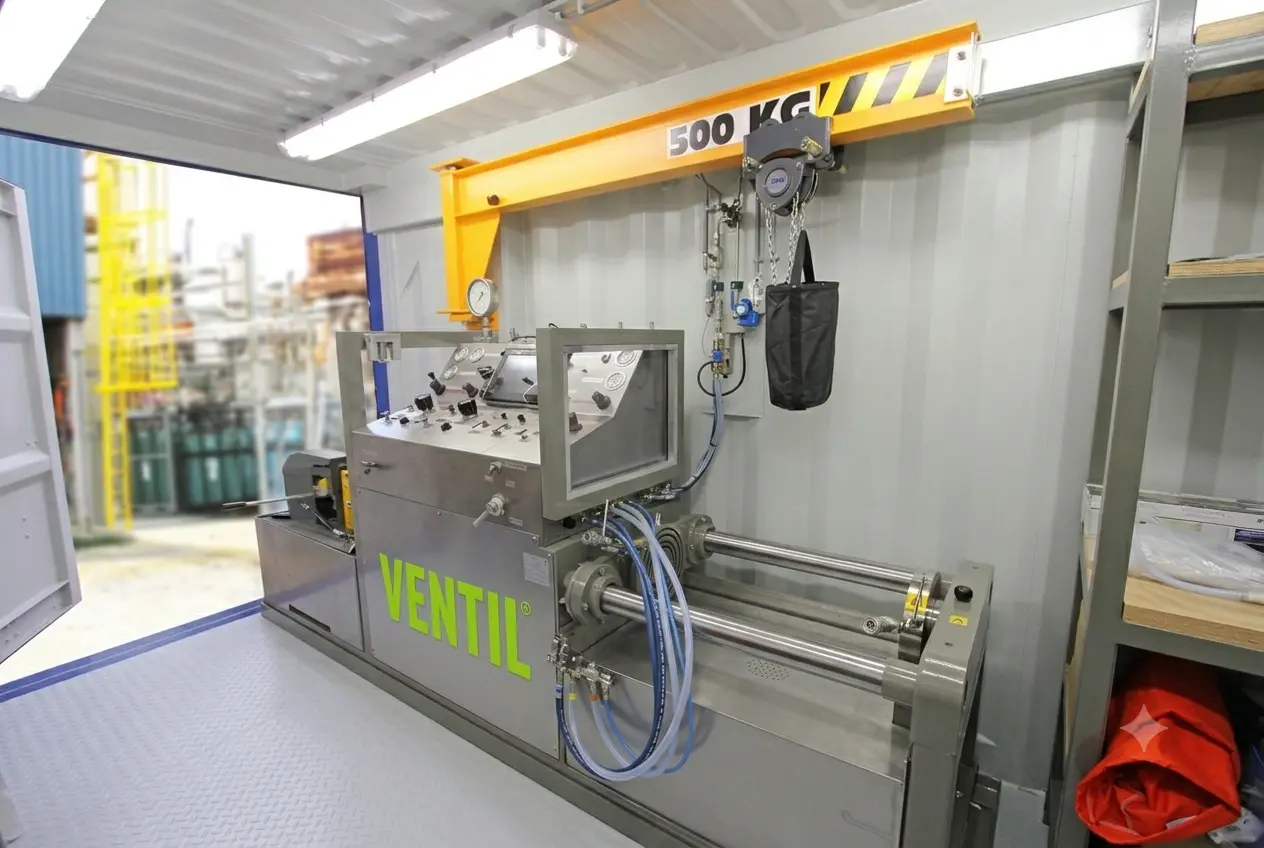

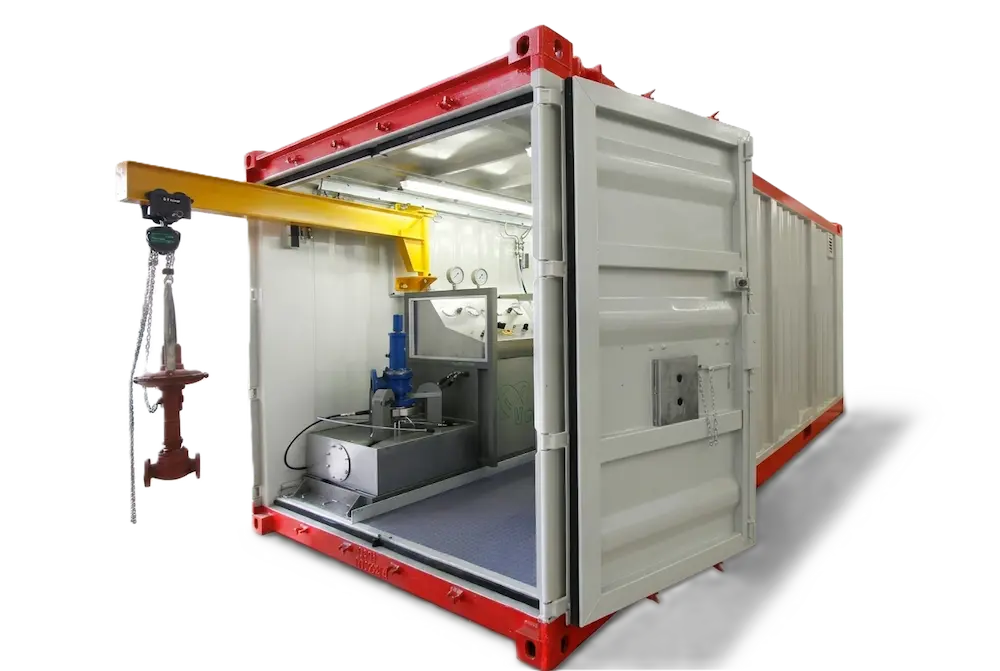

Specifically engineered for mobile applications, the VC25-HC25-CC is ideal for installation in a shipping container, trailer or compact valve repair workshop. Its space-efficient design delivers reliable testing and valve setting capabilities wherever they are needed.

Specifications

Size Range: 1/2"-10" (DN15-DN250)

Max Set Pressure: Up to 300 bar (4,350 psi)

Max Test Pressure: Up to 300 bar (4,350 psi)

Clamping Force: 25 ton

Test Medium: Gas, Liquid

Test Standards: API 526, API 527, EN ISO 4126, PED 2014/68/EU, EN 12266-1, ISO 5208

Safety Features: Safety screen, Two-hand operation

TABLE VC25-CC

Optional Systems

Expand your Setup

PreVenTest NEXUS

PreVenTest Nexus

In-situ testing of spring-loaded PRVs

The next-generation in-situ testing solution for pressure relief and safety valve re-certification

Orbit 10_1000 x 667 pixels

Orbit 10

Portable valve seat resurfacing tool

Valve range: 1 1/2"-10" (DN40-DN250)

Application: Grinding, Lapping

PolirF6_transparant_4

Polir F6

Portable valve seat resurfacing tool

Valve range: 1/4"-6" (DN6-DN150)

Application: Grinding, Lapping
