HVC1

Test and assembly clamp

Safety interlock system

Alignment support for DIN and ANSI flange connections

Strong base for floor fixation

General Purpose

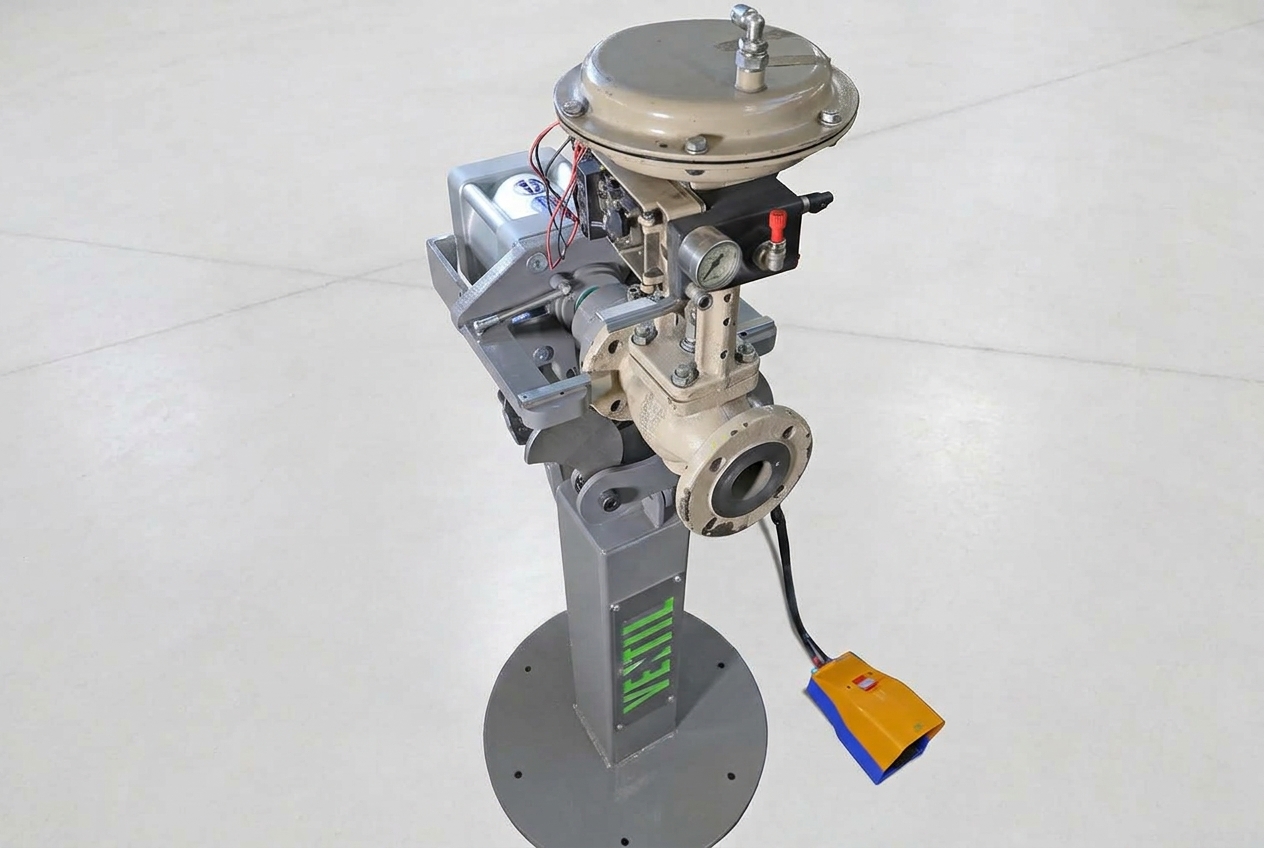

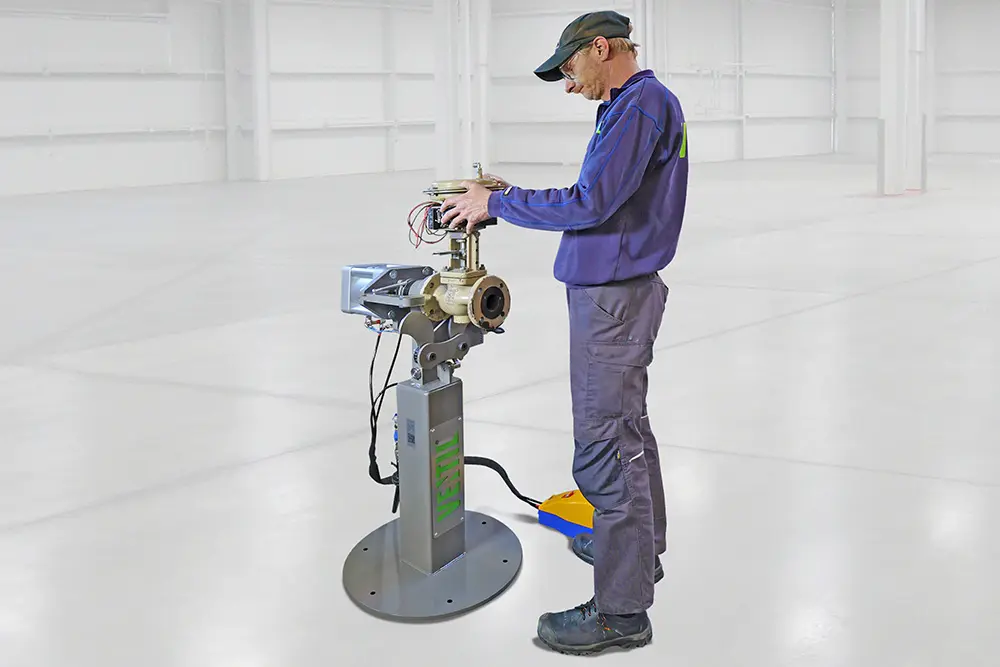

The HVC-1 is a robust, pedestal mounted clamping system for (dis)assembling, stroking (adjusting) and low pressure testing of flanged / waver type (control) valves. The pneumatic operated 2-Claw clamping system generates a maximum clamping force of 1000 kg and is suitable for the range ½" - 4” (DN15 – DN100).

Specifications

Size Range: 1/4"-3/4" (DN8-DN20)

Function: Dis/assembly

Compatible Valve types: Gate, Globe, Check, Control, Ball

Application: In-shop

Power Supply:

Configuration

Strong base for floor fixation (required for full and safe operation)
Adapter clamps, for clamping exotic shaped valves
Hand lever for simultaneously operating the 2 clamping claws
Sealing adapter (clamping table) with O-rings for DIN / ANSI RF flanges
Alignment support for DIN and ANSI flange connections
Safety interlock system
