PRESSURE RELIEF/SAFETY VALVE TEST BENCHES

Designed with specific functions in mind;

 Testing both with Gas and Liquid.
 Ridged design with high quality finish.
 Ventil’s unique Computer Registration System.
 According to all common international test standards and -directives.
Stainless steel control panel and liquid reservoir.

Extended safety features. Safety Enclosure; Safety interlock on clamping system and test system; Kill switch and pressure activated flash light.

Choose the equipment that best meets your needs and budget. Should you require any further information, please do not hesitate to contact us.

STATIONARY – WORKSHOP TEST BENCHES

PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: VC25-SRV
Valve Size:
1/2″-10″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas and Liquid
Test Standard:
API 527
Type:
Single Station
Clamping Force: 25 Ton
Computer Registration System: yes
Safety Enclosure:
yes

Optional Systems
Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control





PRESSURE RELIEF/SAFETY VALVE TEST BENCH
HIGH VOLUME

 Model: VC25-SRV-FL5
Valve Size:
1/2″-10″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas and Liquid
Test Standard:
API 527, High Volume
Type:
Single Station
Clamping Force: 25 Ton
Computer Registration System: yes
Safety Enclosure:
yes

Optional Systems
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control





PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: VC40-SRV
Valve Size:
1/2″-16″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas and Liquid
Test Standard:
API 527
Type:
Single Station
Clamping Force: 40 Ton
Computer Registration System: yes
Safety Enclosure:
yes

Optional Systems
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control





PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: VC70-SRV
Valve Size:
1/2″-16″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas and Liquid
Test Standard:
API 527
Type:
Single Station
Clamping Force: 70 Ton
Computer Registration System: yes
Safety Enclosure:
yes

Optional Systems
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control

PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: MP2-25-SRV
Valve Size:
1/2″-10″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas and Liquid
Test Standard:
API 527
Type:
Double Station
Clamping Force: 25 Ton
Computer Registration System: yes
Safety Enclosure:
yes

Optional Systems
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control

PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: MP2-40-SRV
Valve Size:
1/2″-16″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas and Liquid
Test Standard:
API 527
Type:
Double Station
Clamping Force: 40 Ton
Computer Registration System: yes
Safety Enclosure:
yes

Optional Systems
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control





PRESSURE/VACUUM RELIEF VALVE TEST BENCH

 Model: CT-800
Valve Size:
2″-24″
Test Pressure:
-500 mbar – 7 Bar
Test Medium:
Gas
Test Standard:
API 2000
Type:
Single Station

Optional Systems
Safety Enclosure
Computer Registration System



PRESSURE RELIEF/SAFETY VALVE WORK STATION

The Ventil NR-10 PSV work station is the complete solution for safe and efficient (dis)assembly of Pressure Safety Valves. The NR-10 exists of a ridged
base structure with 3-Jaw Chuck for clamping a PSV on the inlet nozzle.

The versatile NR-10 work station is designed and equipped for two basic purposes;
– The ridged fixation and base structure gives you full surrounding access for inspection and (dis)assembling of the PRV.
– ‘Backbreaking’ use of long pipe ends for (un)screwing the nozzle is no longer needed with the high torque drive system, connected to the Chuck.

– Range: 1/2″- 10″/ DN15 – 250 mm (larger sizes available on rquest)
– Nominal Torque: 4200 Nm
– Peak Torque: 8400 Nm
– Dimensions: 1540x895x1500 mm / 60x35x60 Inch
– Weight: 700 kg. / 1500 Lbs

PORTABLE & MOBILE TEST BENCHES

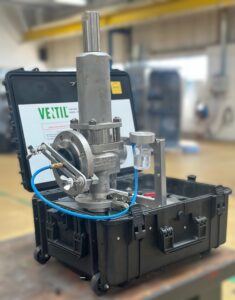

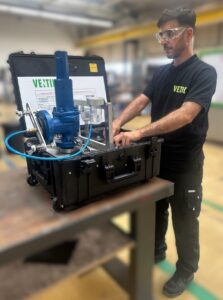

PORTABLE PRESSURE RELIEF/SAFETY VALVE TEST BENCH



Model: VC2
Valve Size:
1/2″-2″
Test Pressure:
0-200 Bar/ 2,900 PSI
Test Medium:
Gas
Test Standard:
API 527
Type:
Single Station
Clamping Force: 2 Ton
Safety Screen: yes

Optional Systems
Computer Registration



PORTABLE PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: VC7.5
Valve Size:
1/2″-4″
Test Pressure:
0-200 Bar/ 2,900 PSI
Test Medium:
Gas
Test Standard:
API 527
Type:
Single Station
Clamping Force: 7.5 Ton
Safety Screen: yes

Optional System
Computer Registration
 Automatic Set Pressure Testing
Ramp Rate Control



MOBILE PRESSURE RELIEF/SAFETY VALVE TEST BENCH



Model: VC10-CC
Valve Size:
1/2″-4″
Test Pressure:
0-200 Bar/ 2,900 PSI
Test Medium:
Gas
Test Standard:
API 527
Type:
Single Station
Clamping Force: 10 Ton
Safety Screen: yes



CONTAINERIZED PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: VC25-CC
Valve Size:
1/2″-10″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas or Liquid
Test Standard:
API 527
Type:
Single Station
Clamping Force: 25 Ton

Optional Systems
Safety Enclosure
Computer Registration
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control

CONTAINERIZED PRESSURE RELIEF/SAFETY VALVE TEST BENCH

 Model: VC40-CC
Valve Size:
1/2″-10″
Test Pressure:
0-300 Bar/ 4,350 PSI
Test Medium:
Gas or Liquid
Test Standard:
API 527
Type:
Single Station
Clamping Force: 40 Ton

Optional Systems
Safety Enclosure
Computer Registration
Compressor Skid (300 Bar)
Automatic Set Pressure Testing
Ramp Rate Control
