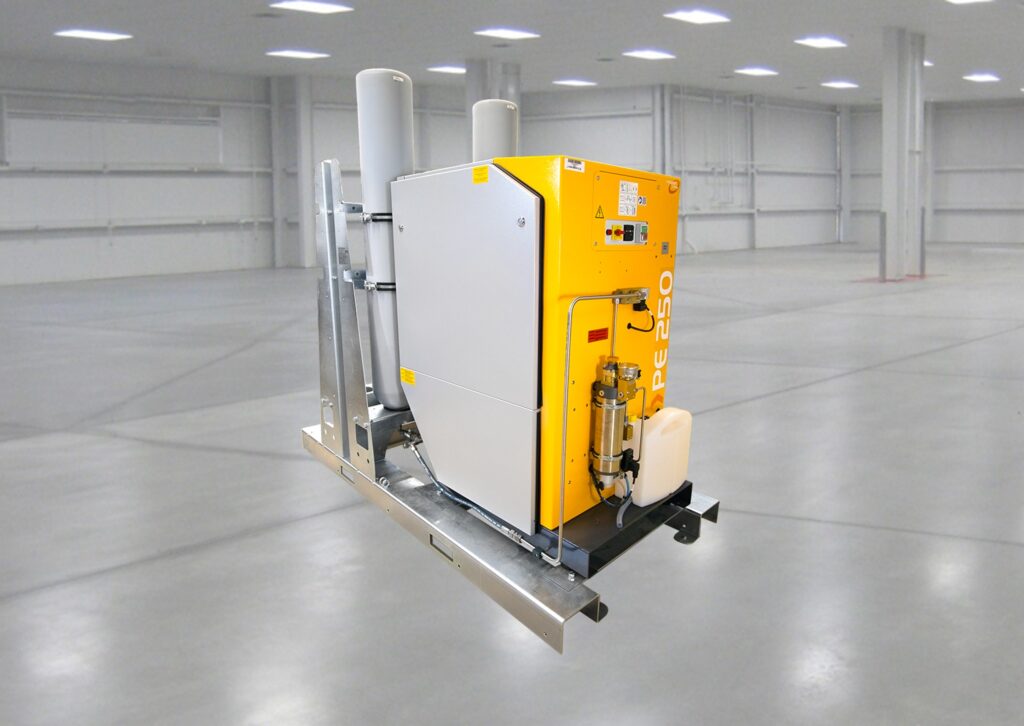

HIGH PRESSURE
COMPRESSOR SKID
Model: HPGC-2
High pressure compressor & storage station
This electrical driven compressor supplies compressed air up to 300 bar / 4,350 psi and automatically pressurizes two storage cylinders with a total capacity of 100 liter.
The compressor is designed and equipped for industrial purposes and is completed with a low noise cabinet with filter, automatic condensate draining, cooling system and safety valve.
The storage cylinders are completed with block valves, a safety valve and are mounted ‘top way down’ to prevent that moisture accumulates inside.
Skid mounted, electrical driven
Medium: Air
Filling pressure: 300 bar (4,350 psi.) (*)
Filling rate / capacity: 250 l/min (529 ft3/hr.) (*)
Storage capacity: 2x 50 liter (13 gallons cylinder) (*)
Bottle certification: PED (*)
Operating temperature: +5° … +45°C
Sound: <80 db (silent cabinet)
Dimensions / weight:
(l) 2 x (w) 1.1 x (h) 1.8 meter (450 kg.)
(l) 79 x (w) 43 x (h) 71 Inch (990 lbs.)
Required connection: 380 – 400 V 3 phase + ground + neutral (*)
(*) Higher capacity, pressure levels, different power supply or bottle certifications available (for example: ASME) on request.
