PRESSURE RELIEF
VALVE TEST BENCHES
TRUSTED BY TECHNICIANS, PREFERRED FOR PERFORMANCE.

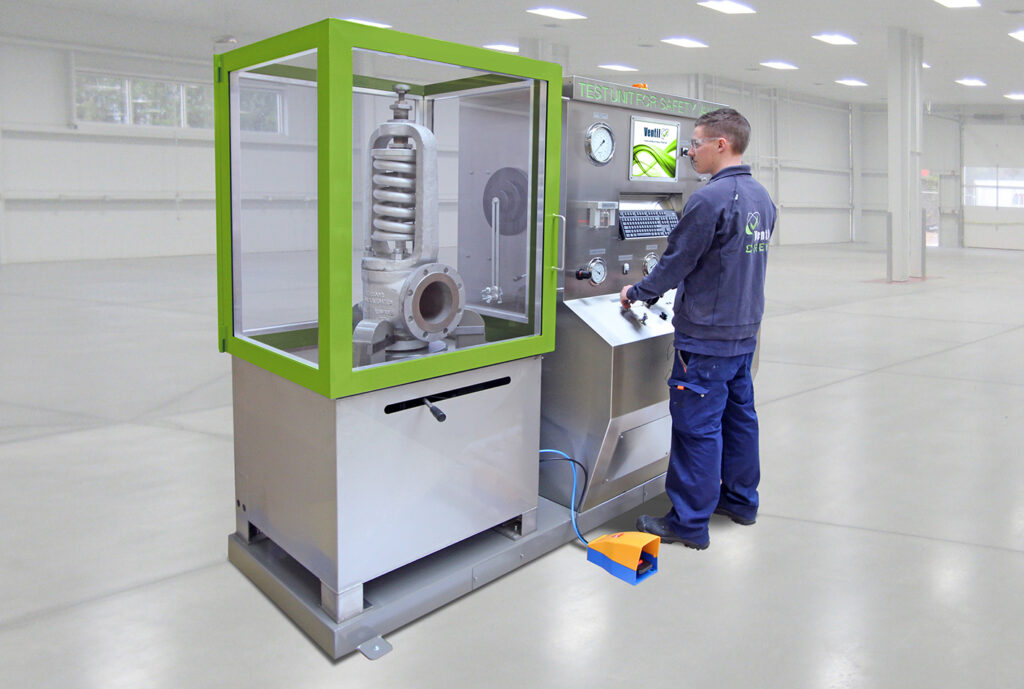

Model: VC-SRV
The VC-SRV is an universal and versatile test bench for Pressure Relief-/Safety Valves, designed for precise, safe and efficient testing of valves from 1/2″ to 16″. It handles pressures up to 300 bar (4,350 psi) with gas or liquid media, fully compliant with API 527 standards.
Test bench specification
Model: VC-SRV
Valve Size: 1/2″-16″
Test Pressure: 0-300 Bar/ 4,350 PSI
Test Medium: Gas and Liquid
Test Standard: API 527
Type: Single Station
Clamping Staion: Automatic 3-Claw clamping system
Bubble Counter: yes
Computer Registration System: yes
Safety Features: Safety enclosure, under pressure flash light, interlocked hydraulic clamping system, kill switch test system operation.

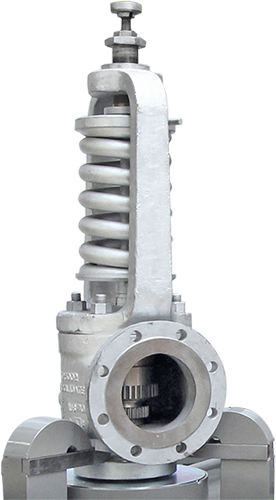

Valve size, range & application

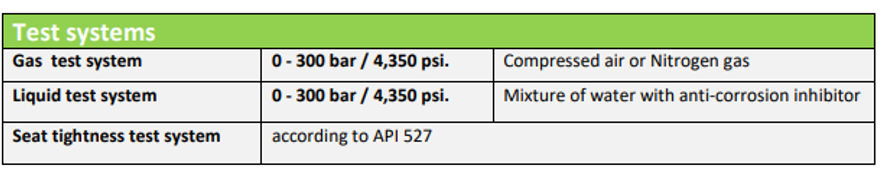

Test systems & Options
Optional Systems
• Compressor skid (300 Bar)
• Automatic Set Pressure Testing
Built for the operator
At its core, the VC25-SRV is driven by an advanced computer registration system, designed to capture every detail of valve testing with precision and reliability.
Every aspect of the VC25-SRV is engineered to support operators, ensuring safe and efficient testing in the workshop or on-site.
Built to last, built to use
Easy to operate, robust, and reliable – built to perform without compromise.
Ergonomically designed, fully stainess steel control panel with all systems needed for easily and safely operating the clamping and test systems.
Exchangable adaptors for extending the range, clamping exotic valve types and protecting the claws.
Stainless steel test liquid reservoir / sump with filter
Lever controlled centering system for simultaneously moving the claws from to the system center.
Effortlessly intuitive
Bespoke software, a comprehensive valve database and a user-friendly interface, that requires minimal training, so your team can get started faster.
The software supports multiple languages, enabling smooth operation for international teams.
Training on your terms
Expert instruction and training available on-site, in your workshop, or remotely – wherever you need it.
Experiences from the front lines

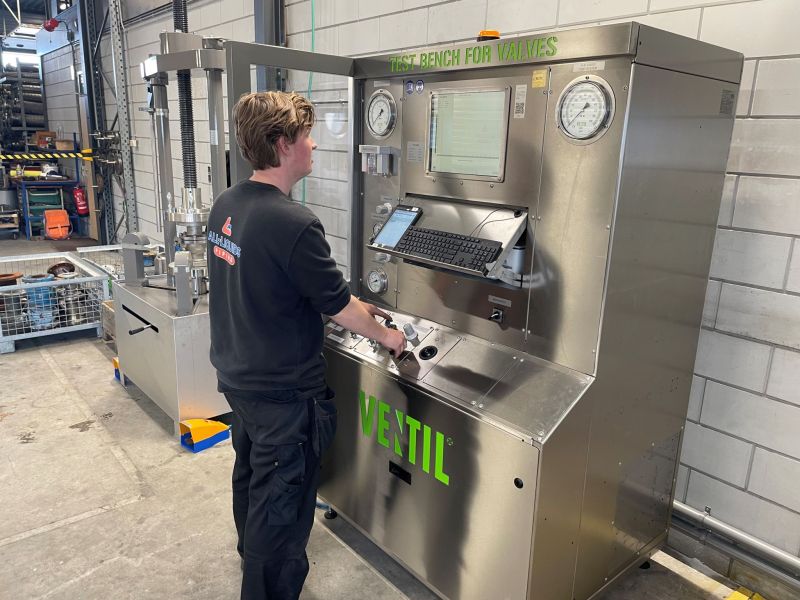

“Installing the VENTIL Test Bench has greatly improved safety and efficiency, replacing manual testing and reducing workload. Test reports are automatically transferred to our document system and linked to certificates, ensuring full compliance with quality and safety standards. The bench has run flawlessly since installation, and VENTIL’s support on digital integration was excellent. We are very satisfied and recommend VENTIL to anyone seeking a high-quality test solution.”
Joost Schreurs, Chemical Engineer, All Liquids Piping
