Vertical Test bench for shut-off valves (VCB)

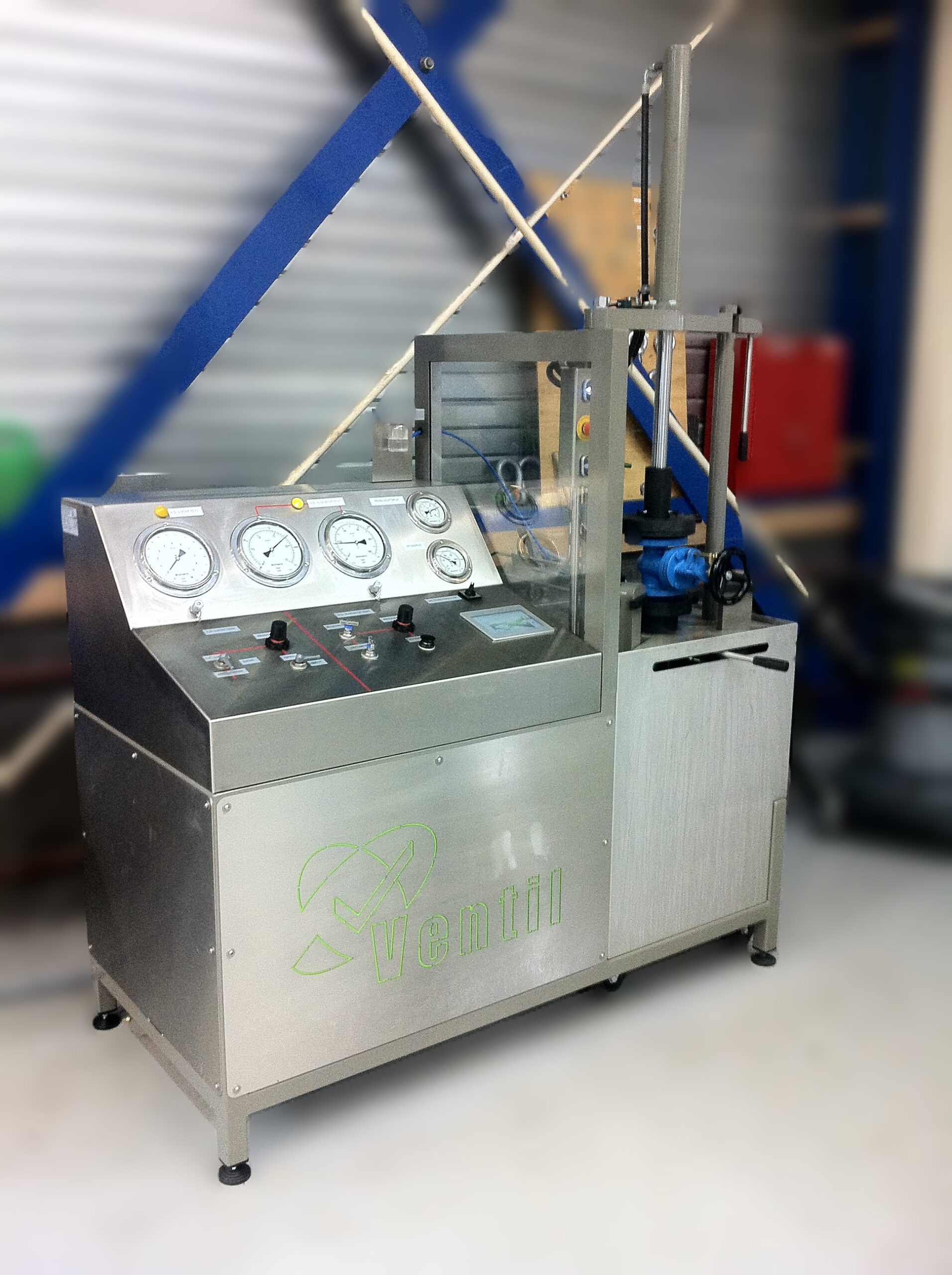

The Ventil VCB5 is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 1/2 – 6 Inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil VCB30-S is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 1/2 – 10 Inch / DN15 – 250 mm.
Gas testing 0 – 7 bar / 100 psi.
Liquid testing 0 – 400 bar / 5,800 psi (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil VCB30-L is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

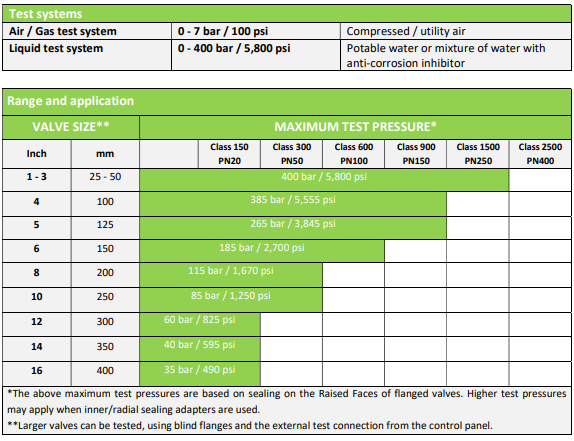

The Ventil VCB50 is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 1 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing

Download specifications

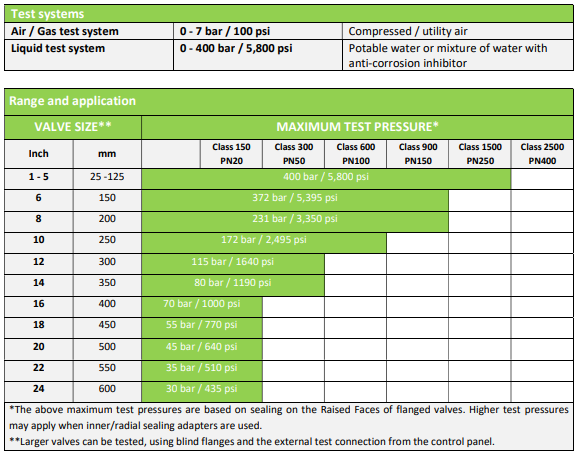

The Ventil VCB100 is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 2 – 24 Inch / DN50 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil VCB200 is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 2 – 36 inch / DN50 – 900 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standard

Download specifications

The Ventil VCB500 is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 2 – 48 inch / DN50 – 1,200 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

Horizontal Test bench for shut-off valves and control valves (HC)

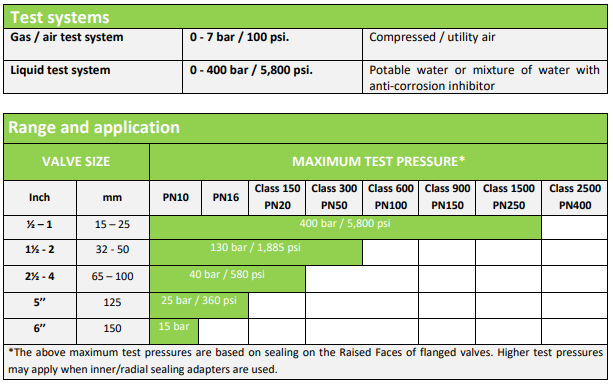

The Ventil HC5 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1/2 – 6 inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

The Ventil HC15 is a unique test bench for testing and ‘stroking’ Control valves up to 10″. The test bench is completed with a variety of test systems for testing and controlling the working and performance of actuator – controlled valves. A digital flow measuring system enables seat leakage testing and classification according to the FCI 70-2 or IEC 534-4.
The U-shape clamping system generates a maximum force of 15 metric ton and provides excellent access for valve (dis)assembly, testing and stroking of the valve and its controls.

Download specifications

The Ventil HC30-S is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1/2 – 10 inch / DN15 – 250 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

The Ventil HC30-L is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing

The Ventil HC50-S is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 1/2 – 10 inch / DN15 – 250 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

The Ventil HC50-L is the complete solution for testing Shut-off valves, in vertical position and according to all common international test standards.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

The Ventil HC75 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1/2 – 6 Inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi (optional: 700 bar / 10,150 psi.)

The Ventil HC100 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1 – 24 inch / DN25 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing

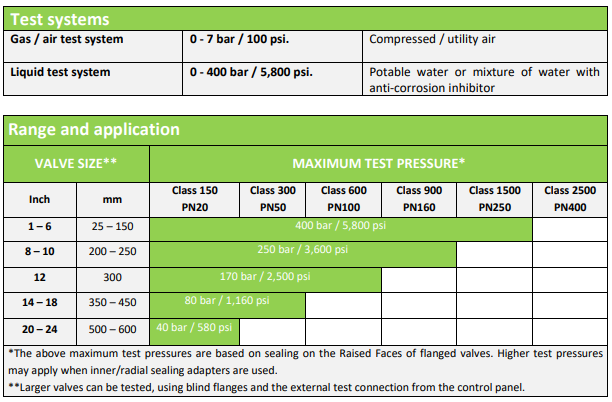

The Ventil HC150 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1 – 24 inch / DN25 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

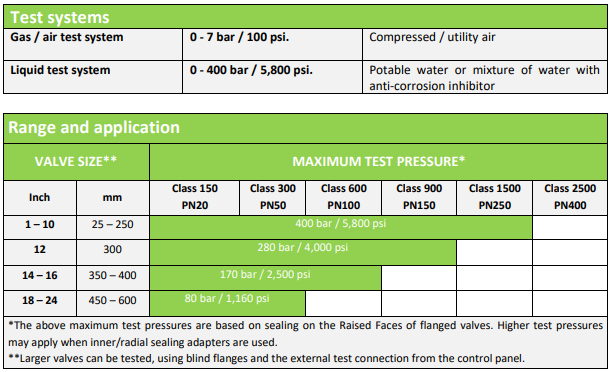

The Ventil HC250 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Available Currently not available from stock
Range 2 – 24 inch / DN50 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

The Ventil HC400 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 1/2 – 6 Inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi (optional: 700 bar / 10,150 psi.)

Download specifications

The Ventil HC600-S is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 4 – 24 inch / DN100 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing

Download specifications

The Ventil HC600-L is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 4 – 36 inch / DN100 – 900 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

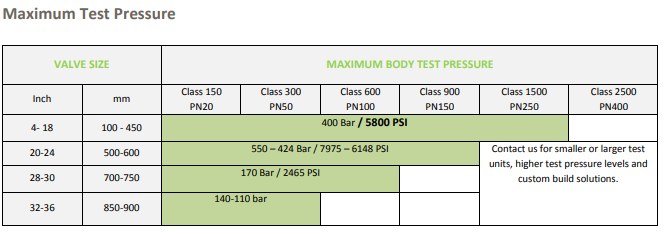

The Ventil HC800 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Available Currently available from stock
Range 4 – 36 inch / DN100 – 900 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HC1000 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 8 – 40 inch / DN200 – 1,000 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HC1500 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Range 8 – 40 inch / DN200 – 1,000 mm
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HC2000 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Available Currently not available from stock
Range 8 – 48 inch / DN200 – 1,200 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HC3000 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Available Currently not available from stock
Range 8 – 48 inch / DN200 – 1,200 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HC4000 is the complete solution for testing Shut-off valves, in horizontal position and according to all common international test standards.

Available Currently not available from stock
Range 8 – 48 inch / DN200 – 1,200 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

Horizontal & Vertical Test bench for shut-off valves and control valves (HVC)

The Ventil HVC5 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 1/2 – 6 inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC30-S is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 1/2 – 10 inch / DN15 – 250 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC30-L is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC50-S is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 1 – 10 inch / DN25 – 250 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC50-L is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Available Currently available from stock
Range 1 – 16 inch / DN25 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC75 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 1 – 16 inch / DN25 – 400 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common

Download specifications

The Ventil HVC100 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 2 – 24 inch / DN50 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC150 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 2 – 24 inch / DN50 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC250 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 2 – 24 inch / DN50 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC5 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 2 – 32 inch / DN50 – 800 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC600-S is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 4 – 24 inch / DN100 – 600 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC600-L is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 4 – 36 inch / DN100 – 900 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

The Ventil HVC800 is the complete solution for testing Shut-off valves, in horizontal & vertical position and according to all common international test standards.

Range 4 – 36 inch / DN100 – 900 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi. (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Download specifications

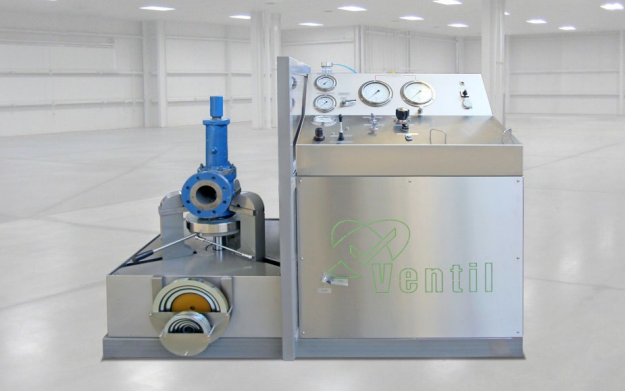

Test bench for Pressure Relief Valves, PSV Testing (VC-SRV)

The Ventil VC25-SRV is the complete solution for quick, easy and accurate testing and pressure setting of all common pressure relief valves in gas and liquid service. It is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 12 inch / DN15 – 300 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527

The Ventil VC40-SRV is the complete solution for quick, easy and accurate testing and pressure setting of all common pressure relief valves in gas and liquid service. It is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527

The Ventil VC70-SRV is the complete solution for quick, easy and accurate testing and pressure setting of all common pressure relief valves in gas and liquid service. It is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527

High Volume Test bench for Pressure Relief Valves (VC-SRV-FLII)

The Ventil VC25-SRV-FLII is the complete solution for quick, easy and accurate pressure setting and ‘high volume testing’ of Pressure Safety Valves in gas and liquid service. The design and configuration is based on many years of experience in safety valve testing and repair.
The VC25-SRV-FLII is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 12
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527

Download specifications

The Ventil VC25-SRV-FL5 is the complete solution for quick, easy and accurate pressure setting and ‘high volume testing’ of Pressure Safety Valves in gas and liquid service. The design and configuration is based on many years of experience in safety valve testing and repair.
The VC25-SRV-FL5 is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 12
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527

Download specifications

The Ventil VC40-SRV-FLII is the complete solution for quick, easy and accurate pressure setting and ‘high volume testing’ of Pressure Safety Valves in gas and liquid service. The design and configuration is based on many years of experience in safety valve testing and repair.
The VC40-SRV-FLII is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 16
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527
Delivery Ready for use

Download specifications

Universal Test bench  with dedicated Gas and Liquid Clamping System (MP2-SRV)

The Ventil MP2-25-SRV is the complete solution for quick, easy and accurate testing and pressure setting of all common pressure relief valves. It has a dedicated clamping and test systems for gas service and a dedicated clamping and test system for liquid service.
The MP2-25-SRV is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 6 Inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi (optional: 700 bar / 10,150 psi.)
Seat leakage testing acc. to all common standards

Range 1/2 – 6 Inch / DN15 – 150 mm.
Gas testing 0 – 7 bar / 100 psi
Liquid testing 0 – 400 bar / 5,800 psi (optional: 700 bar / 10,150 psi.)

Download specifications

The Ventil MP2-40-SRV is the complete solution for quick, easy and accurate testing and pressure setting of all common pressure relief valves. It has a dedicated clamping and test systems for gas service and a dedicated clamping and test system for liquid service.
The MP2-40-SRV is standard completed with a fully integrated, Windows operated Computer Registration System. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing 0 – 300 bar / 4,350 psi
Seat leakage testing Full range, acc. to API 527

Download specifications

COmpact Test Bench for use inside container and trailers (VC-CC)

The Ventil VC10-CC is designed for quick, easy and accurate testing and setting of all common pressure relief valves. This compact and robust test bench is specially designed for the use containers.
The VC10-CC is standard completed with a fully integrated, Windows operated Computer Registration System with laptop computer. The unique test software gives digital reading, verification against test standards and storing of a customized test certificate.

Range 1/2 – 4 inch / DN15 – 100 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing N/A
Seat leakage testing Full range, acc. to API 527

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

The Ventil VC25-CC is designed for quick, easy and accurate testing and setting of all common pressure relief valves. This compact and robust test bench is specially designed for the use containers.
The VC25-CC is standard completed with a fully integrated, Windows operated Computer Registration System with laptop computer. The unique test software gives digital reading, verification against test standards and storing of a customized test certificate.

Range 1/2 – 10 inch / DN15 – 250 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing N/A
Seat leakage testing Full range, acc. to API 527

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

The Ventil VC40-CC is designed for quick, easy and accurate testing and setting of all common pressure relief valves. This compact and robust test bench is specially designed for the use containers.
The VC40-CC is standard completed with a fully integrated, Windows operated Computer Registration System with laptop computer. The unique test software gives digital reading, verification against test standards and storing of a customized test certificate.

Range 1/2 – 16 inch / DN15 – 400 mm.
Gas testing 0 – 300 bar / 4,350 psi
Liquid testing N/A
Seat leakage testing Full range, acc. to API 527

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Test bench for Pressure/vacuum Valves Range 2-24 INch/DN 50-600 (CT-T4)

The Ventil CT800-T4 is specially designed and fully equipped for testing and setting of all common tank relief valves, like for example; Pressure-Vacuum (‘breather’) valves and emergency vacuum vents in the range 2-24″. The compact CT800-T4 features a dual range pressure – vacuum test system with digital seat leakage detection and measuring.
The CT800-T4 is standard completed with the unique Windows operated Computer Registration System with laptop computer. The unique test software gives digital reading, verification against test standards, storing and printing of a customized test certificate.

Range 2 – 24 inch / DN50 – 600 mm.
Gas testing -500 mbar to 7 bar / -7 to 145 psi
Liquid testing N/A
Seat leakage testing Full range, acc. to API 2000

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Portable test system Pressure Relief Valves (PREVENTEST)

Ingenious designed system for testing all types of spring operated PSV’s in-situ, in process and under normal operating conditions. The portable system enables you to prove the correct working and performance or identify PSV’s in need of repair without plant shut-down.

Download specifications

Ingenious designed system for testing all types of spring operated PSV’s in-situ, in process and under normal operating conditions. The portable system enables you to prove the correct working and performance or identify PSV’s in need of repair without plant shut-down.

Download specifications

Ingenious designed system for testing all types of spring operated PSV’s in-situ, in process and under normal operating conditions. The portable system enables you to prove the correct working and performance or identify PSV’s in need of repair without plant shut-down.

Download specifications

Ingenious designed system for testing all types of spring operated PSV’s in-situ, in process and under normal operating conditions. The portable system enables you to prove the correct working and performance or identify PSV’s in need of repair without plant shut-down.

Download specifications

Portable test system for Control valves

The universal and versatile Ventil VenTrack system enables you to test all critical ‘Control valve controls’ which cause or at least, contribute to control loop performance problems. The VenTrack contains of an unique combination of instruments and intelligent software to identify and rectify control valve problems.

Download specifications

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Containers

Fully equipped 10ft test container for on-site repairs and testing of Pressure Safety Valves.

Download specifications

Fully equipped 20ft repair and test container for on-site overhaul and testing of Pressure Safety Valves.

Download specifications

Fully equipped repair container for on-site overhaul and repair of all common Shut-off valves, Safety valves and Control valves

Download specifications

Fully equipped 20ft repair and test container for on-site overhaul and testing of Pressure Safety Valves.

Download specifications

Fully equipped 20ft repair and test container for on-site overhaul and testing of Pressure Safety Valves.

Download specifications

Fully equipped 40ft container for on-site repairs and testing of all common Shut-off valves, Safety valves and Control valves.

Download specifications

Portable grinding and lapping machines

The Ventil POLIR F6 is a portable, battery driven grinding and lapping machine for Globe and Safety valves in the range 3/8 – 6″.

The Ventil C2.5 extends the POLIR F6 machine for the grinding and lapping valves with conical seats in the range 3/8 – 2.5″.

Download specifications

The Ventil POLIR C6 is a complete solution for grinding and lapping valves with conical seats in the range 3/8 – 6″.

Download specifications

The Ventil POLIR C12 is a complete solution for grinding and lapping valves with conical seats in the range 3/8 – 12″.

Download specifications

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Download specifications

The Ventil POLIR CL8 is a complete solution for grinding and lapping 140 degrees ‘lens’ seats in the range DN100 – 200 mm, according to DIN 2696.

Download specifications

The Ventil ORBIT 10 is a robust, but light weight grinding and lapping machine for ‘in-situ’ or ‘in-shop’ repair of damaged valve seats. Range 1½ – 10”

Download specifications

The Ventil ORBIT 24 is a robust, but light weight grinding and lapping machine for ‘in-situ’ or ‘in-shop’ repair of damaged valve seats. Range 6 – 24”

Download specifications

The Ventil ORBIT 40 is a robust, but light weight grinding and lapping machine for ‘in-situ’ or ‘in-shop’ repair of damaged valve seats. Range 6 – 40”.

Download specifications

The Ventil ORBIT 64 is a robust, but light weight grinding and lapping machine for ‘in-situ’ or ‘in-shop’ repair of damaged valve seats. Range 6 – 64”.

Download specifications

Stationary grinding and lapping machine

The Ventil PRO-DUAL 10 is a stationary machine for ‘In-Shop’ repair of valve seats.

Download specifications

The Ventil PRO-DUAL 16 is a stationary machine for ‘In-Shop’ repair of valve seats.

Download specifications

The Ventil PRO-DUAL 24 is a stationary machine for ‘In-Shop’ repair of valve seats.

Download specifications

The Ventil PRO-DUAL 40 is a stationary machine for ‘In-Shop’ repair of valve seats.

Download specifications

Valve boring machines

The Ventil TITAN 16 portable turning and facing machine is designed for ‘In-Situ’ repair and prefabbing sealing faces on the out and inside of valves, pumps, turbine houses, flanges and other pipe ends, up to a diameter 16″.

Download specifications

The Ventil TITAN 24 portable turning and facing machine is designed for ‘In-Situ’ repair and prefabbing sealing faces on the out and inside of valves, pumps, turbine houses, flanges and other pipe ends, up to a diameter 24″.

Download specifications

Ball polishing machine

The Ventil BG-10 Ball grinding and polishing machine is specially designed for repairing balls of floating ball valves or trunnion mounted ball valves in the range 2½ up to 10”.

Download specifications

High speed grinding machines

The Ventil PROFILE 16 high speed grinding machines is designed for precision finishing of flat and conical sealing faces up to a diameter of 16″.

Download specifications

The Ventil PROFILE 24 high speed grinding machines is designed for precision finishing of flat and conical sealing faces up to a diameter of 24″.

Download specifications

Open face – flat lapping machine

The OPTIC 15 C lapping machine has a 15″ / 380 mm lapping plate.

Download specifications

The OPTIC 15 lapping machine has a 15″ / 380 mm lapping plate.

Download specifications

The OPTIC 24 lapping machine has a 24″ / 600 mm lapping plate.

Download specifications

The OPTIC 36 lapping machine has a 36″ / 914 mm lapping plate.

Download specifications

The OPTIC 60 lapping machine has a 60″ / 1524 mm lapping plate.

Download specifications

Tools & ACCESSORIES

The Ventil valve maintenance kit is a complete set of hand tools necessary for removing flat gaskets and spindle packing rings from all type of valves. This set is a ‘must have’ for each valve technician

Download specifications

Handy set for the internal inspection of (safety) valve body cavities.

Download specifications

The Ventil Focus hand lapping system enables you to achieve a high quality ‘mirror’ finish against the lowest costs. The handy packed composite blocks can be used for components up to a diameter of approx. 2.5″ / 65 mm.

Download specifications

The Ventil ULTIMATE 24 is a robust grinding table for grinding the sealing surfaces of Gate valve wedges, Globe valve discs and other metal surfaces.

Download specifications

The Ventil nozzle remover NR10 is the solution for safe and efficient (dis)assembly of pressure safety valves.

Download specifications

DIAGNOSTICS IN-SITU

The Ventil ORION LM100 portable Liquid test system is used for pressure testing valves, pipes, vessels, cylinders, actuators and all other critical pressure equipment up to a test pressure of 100 bar / 1,450 psi.

Download specifications

The Ventil ORION LM500 portable Liquid test system is used for pressure testing valves, pipes, vessels, cylinders, actuators and all other critical pressure equipment up to a test pressure of 500 bar / 7,250 psi.

Download specifications

The Ventil ORION LM1000 portable Liquid test system is used for pressure testing valves, pipes, vessels, cylinders, actuators and all other critical pressure equipment up to a test pressure of 1000 bar / 14,500 psi.

Download specifications

The Ventil ORION LM1500 portable Liquid test system is used for pressure testing valves, pipes, vessels, cylinders, actuators and all other critical pressure equipment up to a test pressure of 1000 bar / 14,500 psi.

Download specifications

Actuator test and control system

The VCP1 has a rugged steel case for in-shop and on-site use. It is completed with 2 independently controlled pneumatic test systems, range:
0 – 2 bar / 30 psi and
0 – 7 bar / 100 psi.

Download specifications

The VCP 2 has a rugged steel case for in-shop and on-site use. It is completed with 3 independently controlled test systems;
0 – 2 bar / 30 psi air
0 – 7 bar / 100 psi air
0 – 21 mA

Download specifications

The VCP 3 stainless steel trolley is completed with 3 independently controlled test systems;
0 – 2 bar / 30 psi air
0 – 7 bar / 100 psi air
0 – 21 mA
0 – 240 V AC/AD
0 – 200 bar hydraulic oil

Download specifications

Contact Us

Subscribe to our newsletter!

Read more
